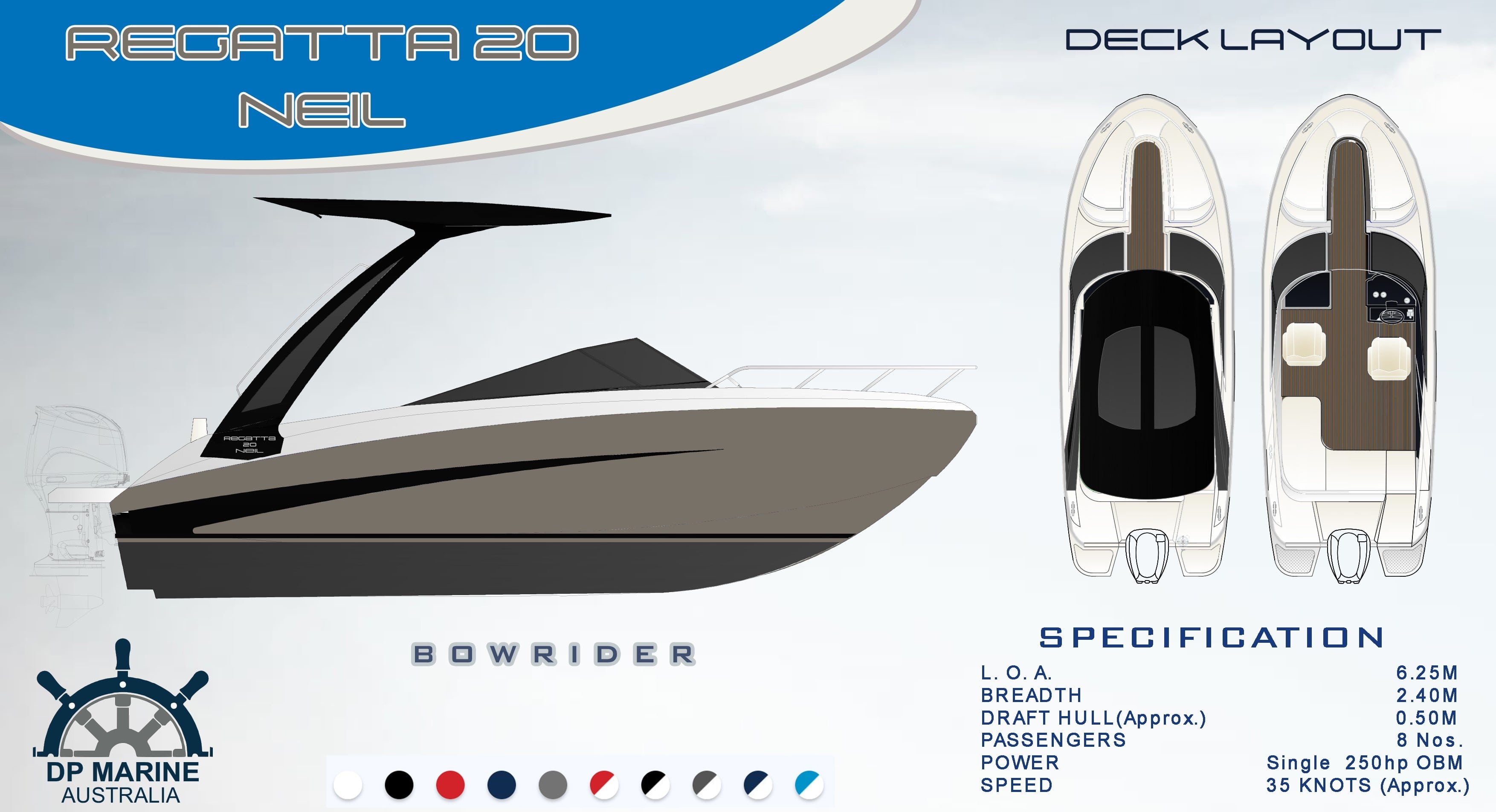

REGATTA 20 BOW RIDER FAST MOTOR BOAT
TECHNICAL SPECIFICATION Fibre Glass Moulded Hull and Deck LENGTH OVERALL 6.25 MTR. BEAM 2.40 MTR. DRAFT 0.50 MTR. DISPLACEMENT (APPROX) 1200 KG FUEL 200 LTRS OBM(SINGLE) 1x(115-175) HP SPEED 24-38 Knots (As per OBM HP capacity)
ARRANGEMENT AND STANDARD EQUIPMENT PVC rub rail. Stainless steel safety fwd. deck railing. Bow Rider seating with filler cushions. Aluminium alloy frame safety glass wind screen fitted with centre opening fitted to front 02 Nos. pilot helm seats on adjustable pedestal fitted to front Insulated ice box with lid provided fwd. of port front seating Aft seating with in fill cushions. Helm console fitted with controls & gauges supplied with OBM, fuel gauge, volt meter and water resistant switch panel 12 Volt DC Electrical system Set of Port/Starboard/Stern Navigation lights . 02 nos. cockpit lights Rotary drive mechanical steering system Stainless steel Bow cleat Stainless steel Aft cleats Electric submersible bilge pump with auto float switch Emergency hand bilge pump FINISHES Seats - Foam filler cushions upholstered in standard vinyl Console - Fibre Glass laminate Lockers inside - Top coat paint finish Deck and cockpit floor - moulded non skid surface finish. Hull and Deck colour - customer choice as per colour availability EXTRA OPTION * Stainless steel ski hook and pole * Folding canvas canopy fitted on stainless steel frame work with (Sunbrella canvas) * Marine horn * PERMA GUARD (Germany) marine vinyl with resistance to stain, scratches and abrasion on seating in lieu of standard vinyl * Hydraulic steering system * 7.5 Kg Stainless steel Anchor * Stainless steel bow guard plate * Teak Decking * Plastic fishing rod holders* * Bow lights on hull sides (port & stbd.) * Fitting of Stainless steel stern boarding ladders(Bow and Aft) * Fitting of 01 No wiper at helm screen * Fuel and lubricant cost for running of trials * 12 volt x 90 Amp Battery * OBM installation cost
.jpg)

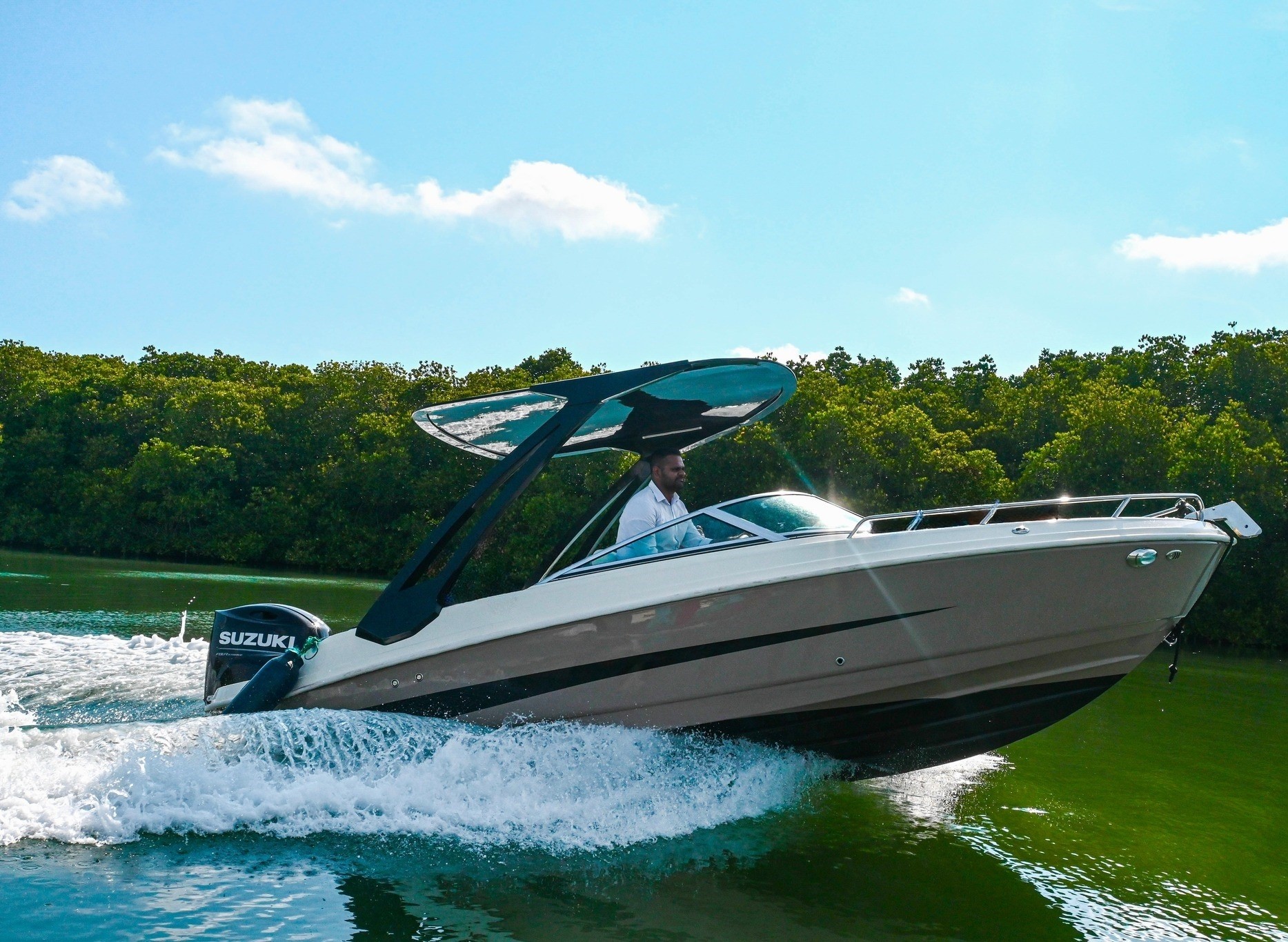

- regatta 20 Neil testing
