Sunset 42

Sunset 42

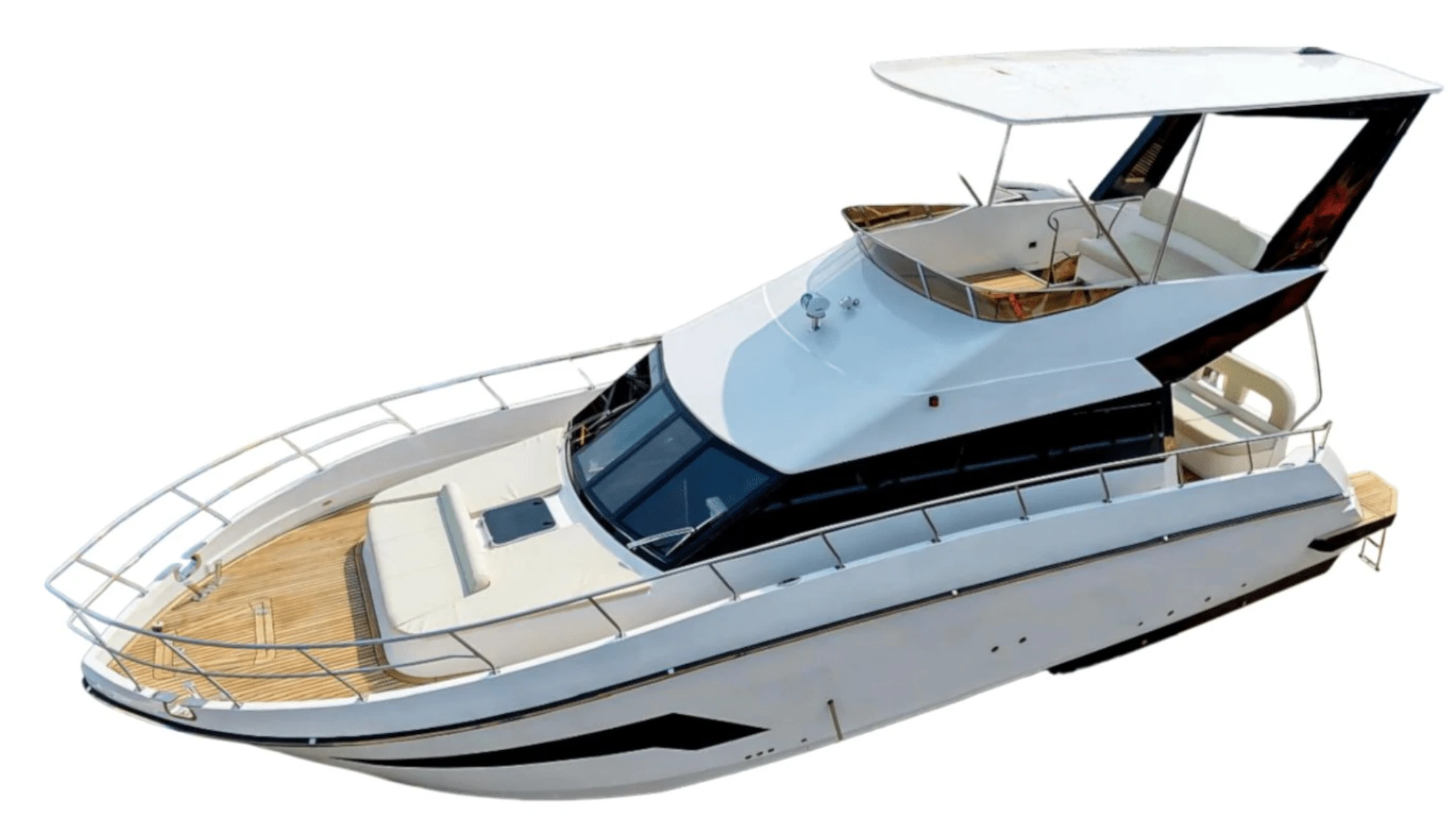

The Sunset 42 is a distinguished vessel, crafted with premium materials and exceptional attention to detail. Designed with a spacious cabin and an opulent interior, it is perfectly suited to the leisure boating market. This model offers air-conditioning and onboard power generators, delivering seamless comfort and uninterrupted energy throughout your journey. Available in two lengths being 42 foot and 45 foot. The Sunset series can be configured with either twin or single cabins and offers a choice between OMB or inboard engines.

Specifications

LENGTH OVERALL 12.78 MTR
FUEL CAPACITY 1000 LTRS
LENGTH OVER HULL 11.88 MTR
WATER CAPACITY 300 LTRS
BEAM 3.95 MTR
ENGINES RECOMMENDED (OBM) 2 x 300HP FOUR STROKE
DRAFT (Light) 0.93 MTR
PERSONS 12
DISPLACEMENT (Light) 7600 KG Approx
SPEED 15-17 KNOTS
DISPLACEMENT (Loaded) 12600 KG Approx

Standard Equipment and Construction

Construction Cockpit / Deck / Hardware

  • Glass composite Hull Construction
  • PU Foam glassed Hull Stringer System
  • Non-skid pattern Molded Decks
  • Plywood reinforced Transom
  • Balsa / Plywood Deck Core
  • Self Draining Cockpit
  • Auto/ Manual control electric bilge pump 5 Nos Auto 1 No manual)
  • Hydraulic steering system single cylinder up to twin 300HP (power steering with engine)
  • Steering Wheel
  • Stainless Steel Bow and Stern Eyes (3 Nos)
  • Drink Holders (4 Nos)
  • Stainless Steel 25mm Bow and side Rails
  • Stainless Steel Anchor Bow roller
  • Rubber fender with stainless steel insert

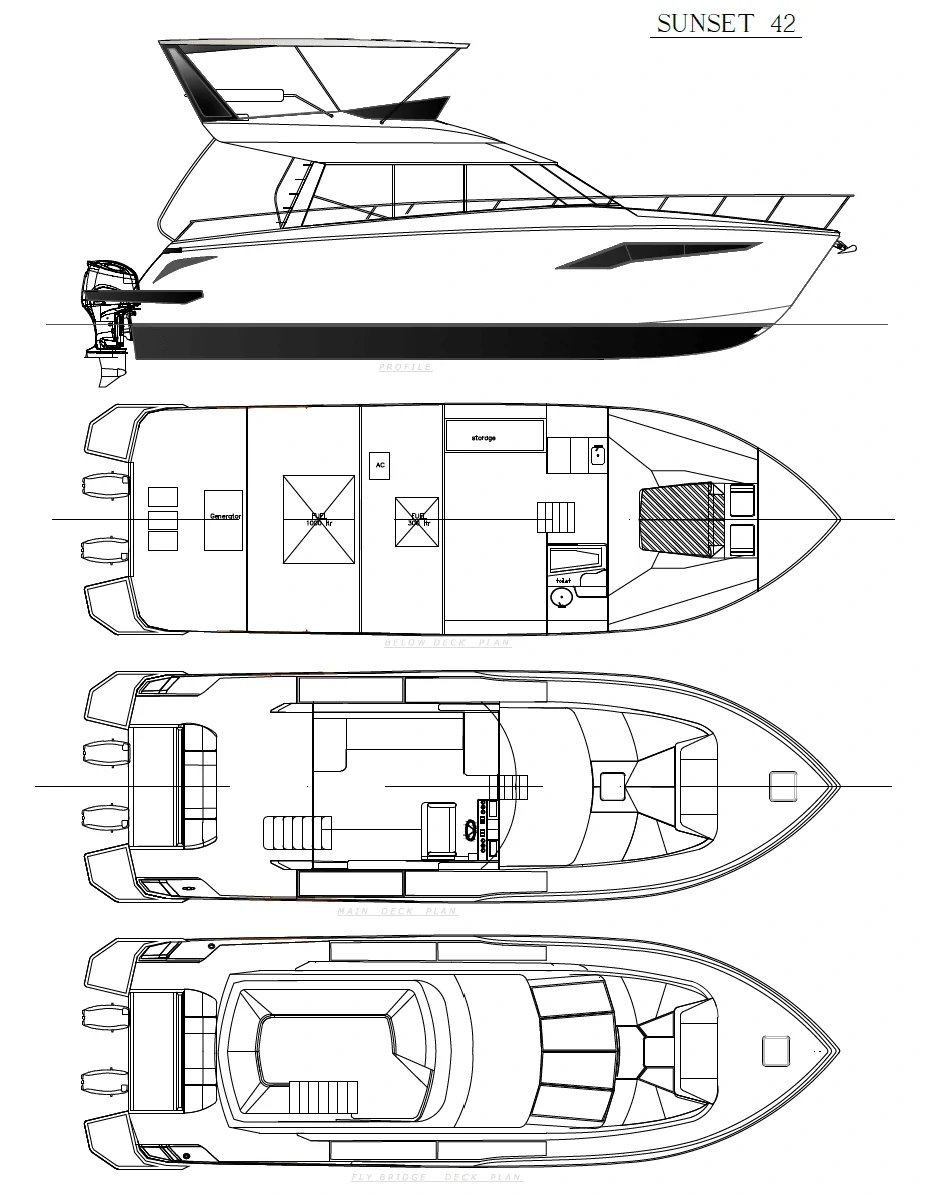

Arrangement

Four Peak

  • Anchor and chain locker with hull side drain
  • Deck hatch
  • Provision to fit for anchor winch and bow roller

Fwd Cabin

Bow seats with CushionsElectric WC with direct dischargeCorian tops in galley and toiletPressurized freshwater system to galley sink, heads sink in toiletFixed Port lights on cabin sidesEscape hatch on coach roofBeds with 8 inch thick cushion mattress.

WheelHouse and Cockpit

Tinted Toughen glass Windscreen and side glassesGRP Console to Stbd Helm Seat STBD with provision for engine instrumentation and controlsSeating provided aft of navigator and helm seat with cushions.Large Cockpit area aft of helm position.Aft seats with soft vinyl upholstered cushion.Storage underneathAir con 20000 BTU unit’s option (option)

Standard Electrics

  • 12 volt system including switch and breaker panel
  • Battery 2 numbers 120 amps, Batteries and 2 x 200 amp batteries
  • Port, Stbd. and Stern navigation lights
  • Strip lights in aft cockpit seat and fly bridge seat and LED celling light in main wheelhouse cabin
  • 230V System Provision to fix marine generator to power mainly air con unit and to additionally charge the batteries
  • Battery charger 40 amp, 3 Pole 12v option
  • Marine Air conditioning System of 20 000 BTU capacity option
  • Battery Selector Switches (2Nos
  • Switch Panel with circuit breakers

Electrical Accessories

Marine Horn - SingleWipersRC Search Light - Single (option)Cockpit courtesy Lights (3)Battery Charger 12V / 40 amp. (option)Shore Power inlet (option)05 Nos Submersible Bilge Pump s with floater switch06 units underwater lights (Option)Music system (option)12 KW Marine Generator (Option)Battery distribution cluster with DVSR (option)

Deck Fittings and Equipments

Anchor Windlass 12V with bow and helm position switches (option)Anchor 17 kgs with 20 mtrs. ChainTransom shower on transomTeak decking in cockpit & Weather deck and fly bridge (option)8” Stainless Steel pull up flat cleats 02 Nos 8” Stainless Steel pull up flat cleats 02 Nos Aft wheelhouse Door full tempered glass (option)
Hull bottom Antifouling Paint

Engine Package

2x 300 HP / 4 Stroke OBM
